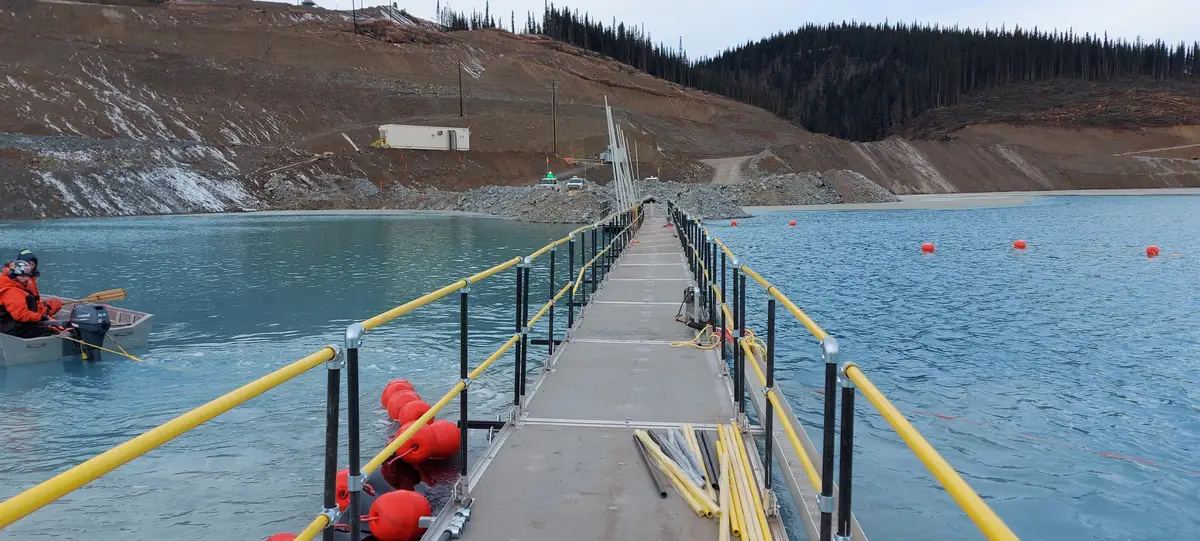

600m pivot walkway Shell Oil Tailings Dam Northern Canada
Xrosswater produce floating walkway structures that can be used in sea, fresh or Mine tailings dams. The following terminology is often used in other countries around the world – floating dock, floating jetty, floating pier, pontoon, barges. The Xrosswater floating walkway has been designed and refined over 25 years to be used in the mining, dredging, dewatering, tailing dam, tailing pond, reservoir, waterways, wetlands.

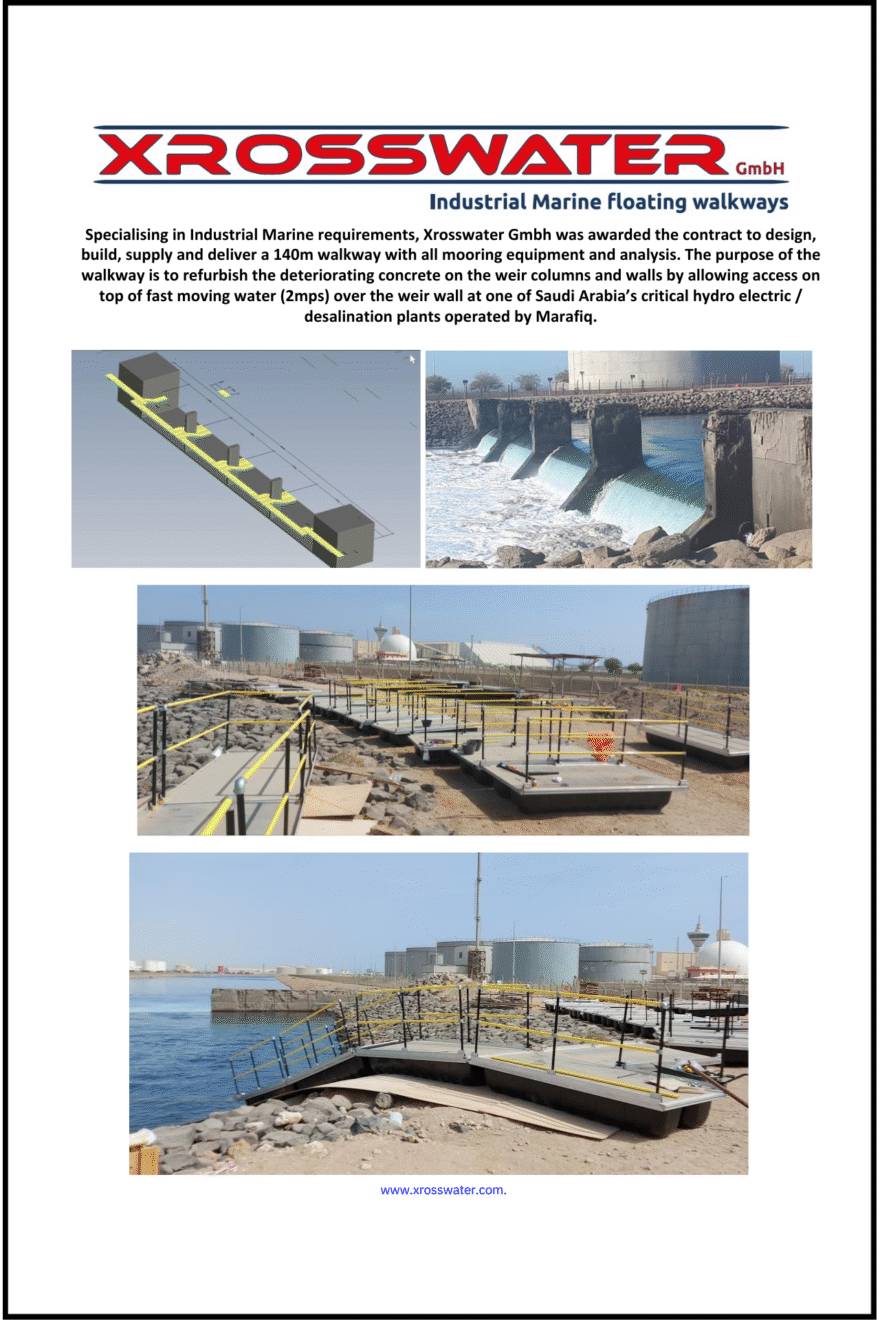

141 meter over a Weir with a water flow of 2m p/s Yanbu Saudi Arabia
Xrosswater’s favoured structure has enabled the firm to complete over 25 projects, in 13 countries over 5 continents, providing the best, sometimes turnkey solutions. Our strategy offers value for the client wherever they are in the world. Our resources and years of experience in industrial marine application ensure our clients receive the highest quality service and often hands-on service they expect. The company has always embraced challenging and custom projects which all require a product that is designed to withstand the harsh industrial marine market.
Design
What make the Xrosswater floating structure unique and different to the common plastic leisure market products, is the 3m x 1.5m float section is produced in component form and once assembled considerably stronger with many many more years longevity in ALL climates. This componet design reduces the massive freight costs related to such large products. * see Delivery below. The integrated aluminium, stainless steel or FRP frame offering industrial strength and multiple configuration options that offers resilience in the industrial marine markets, especially tailings dams, acid / alkaline ponds that exist in mining operations which are often in very remote locations. The Xrosswater sections are 3m long x 1.5m wide with a buoyancy of approximately 850kg

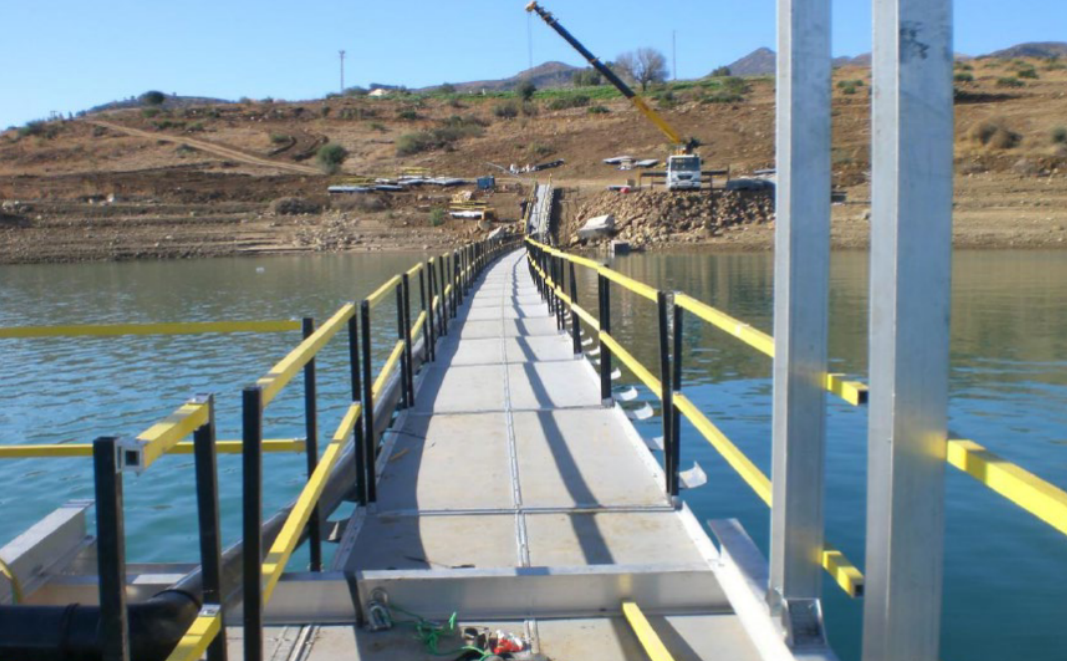

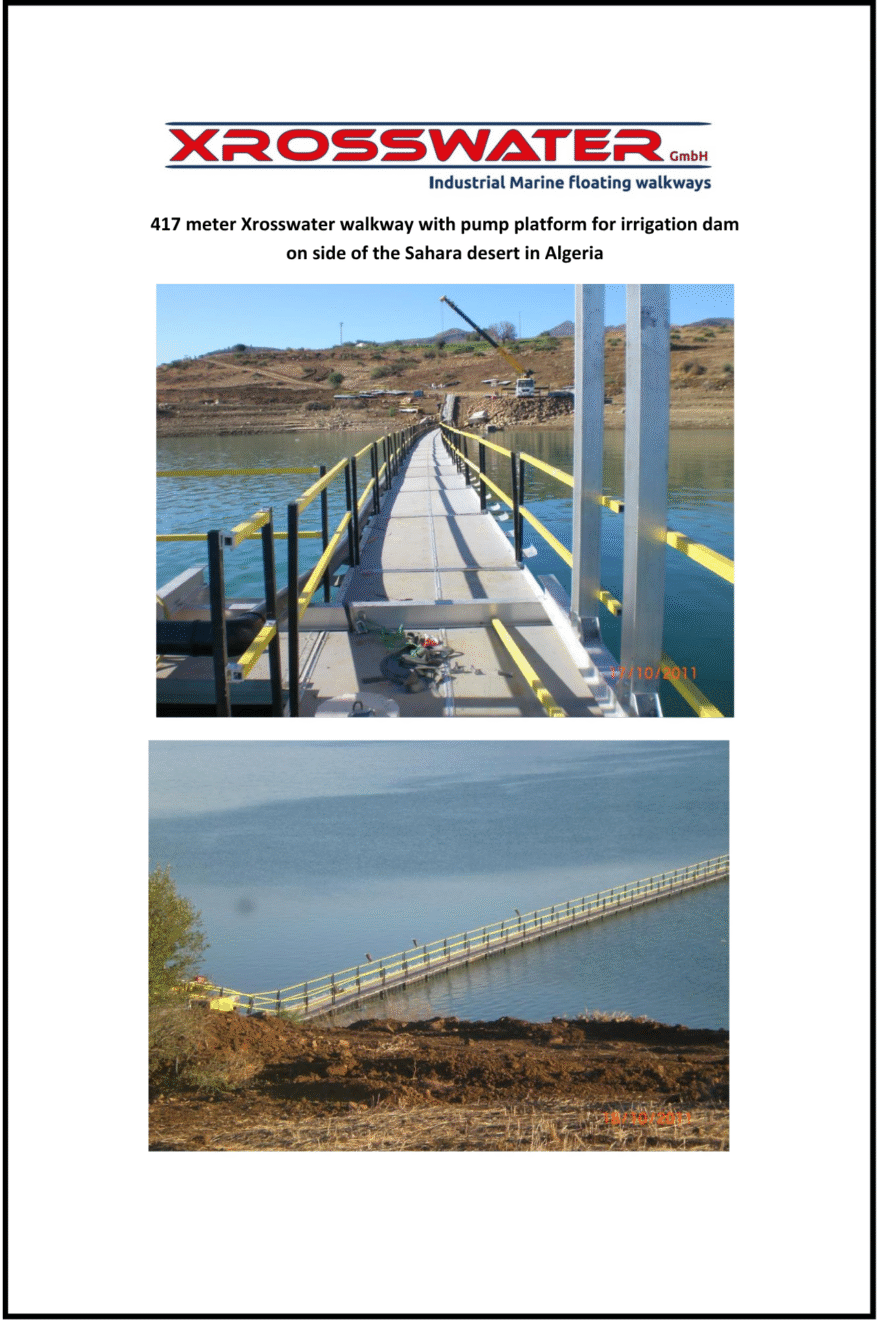

90m walkway and pump platform on reservoir in Algeria

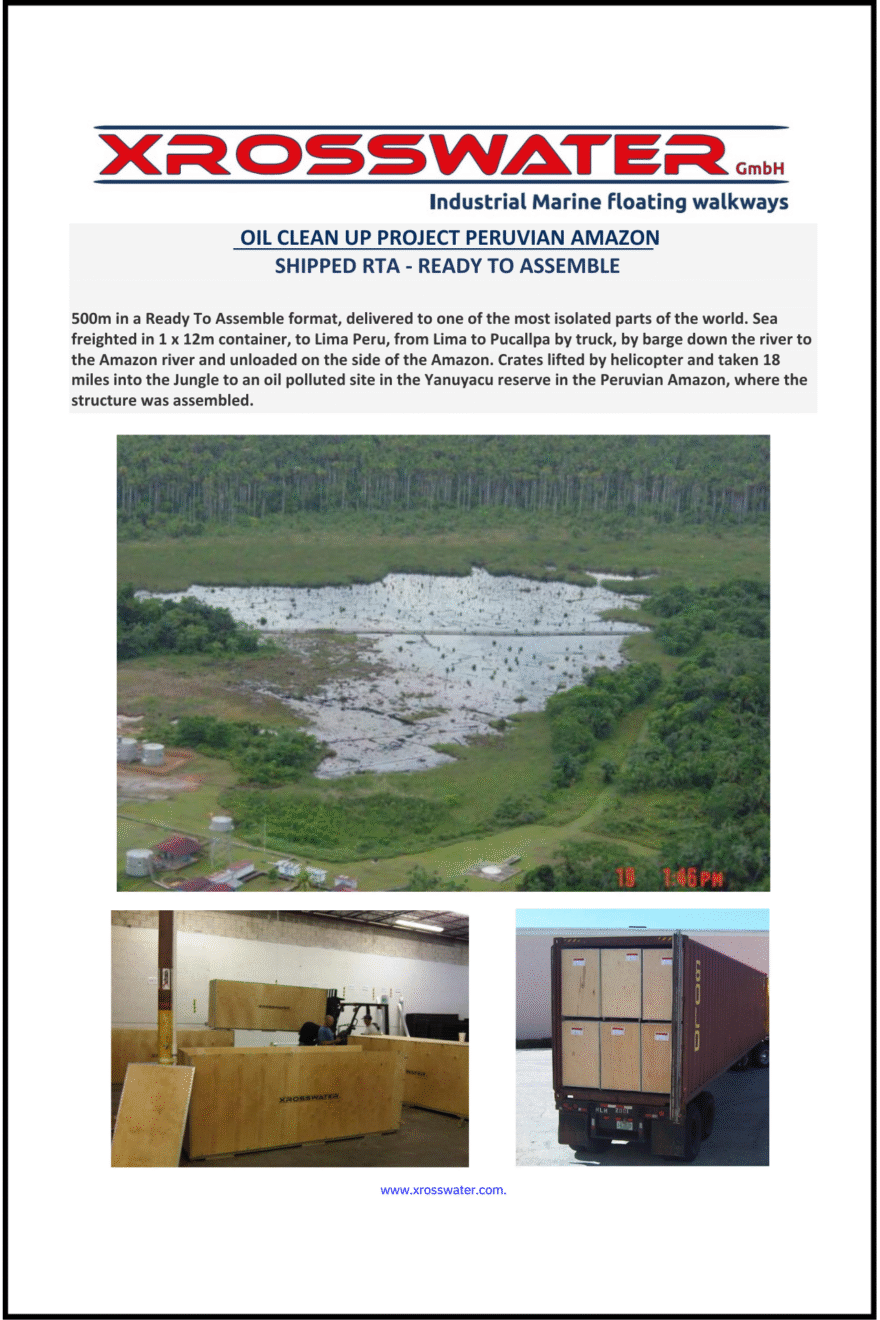

500 m of Xrosswater Walkway in Amazon Jungle Peru
500 m of Xrosswater Walkway in Amazon Jungle Peru
Configuration
The Xrosswater sections can be assembled
- End to End to make a straight walkway.
- End to Side to make 90 degree turns.
- Side by side to make a floating work platform or increase the walkway width in ratio’s of 0.75m (2.5ft).

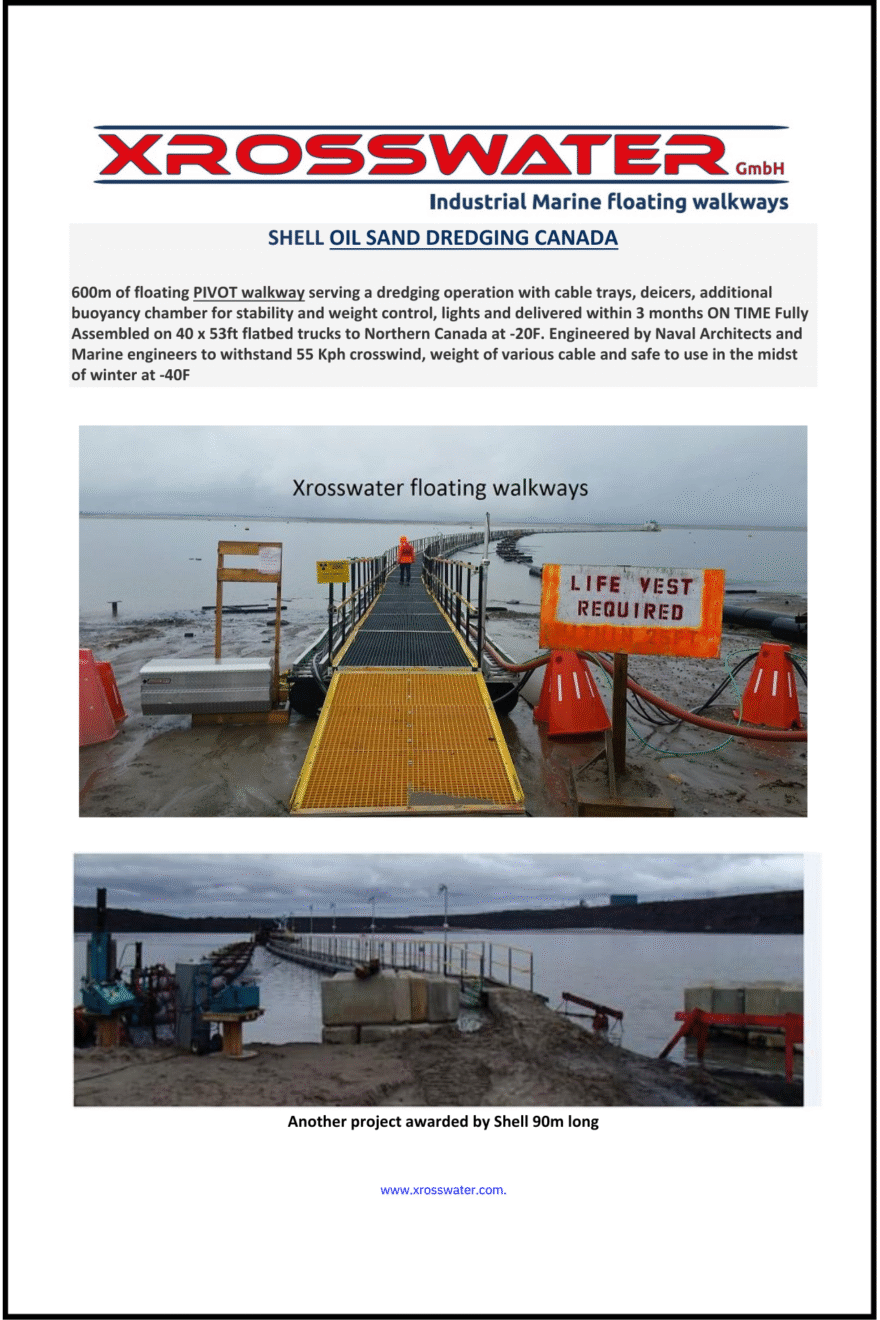

The extra width extensions can carry cable trays, pipes and offer significant stability control for crosswinds or wave motion. For walkways that need to follow a dredger or work boat, Xrosswater also offer a walkway that can pivot like a snake. A 600m pivot walkway with lights, de-icers, cable trays was delivered to Shell Oil in Northern Canada
Deck Structure
The Xrosswater deck surface has been designed with safety being the highest priority. A composite panel produced in Germany offers a lightweight strong surface that maintains the highest grip rating (R13) nonslip surface, perfect for industrial footwear and normal leisure deck shoes, wet or dry. Unlike the plastic leisure floats which can be very slippery when wet, the Xrosswater deck is FIRM to walk-on in cold or hot locations of the world. Very resilience against, UV, low and high PH water and tested and proven to operate successfully at -40c to + plus 40c (-40f to +109F)
WHY XROSSWATER?

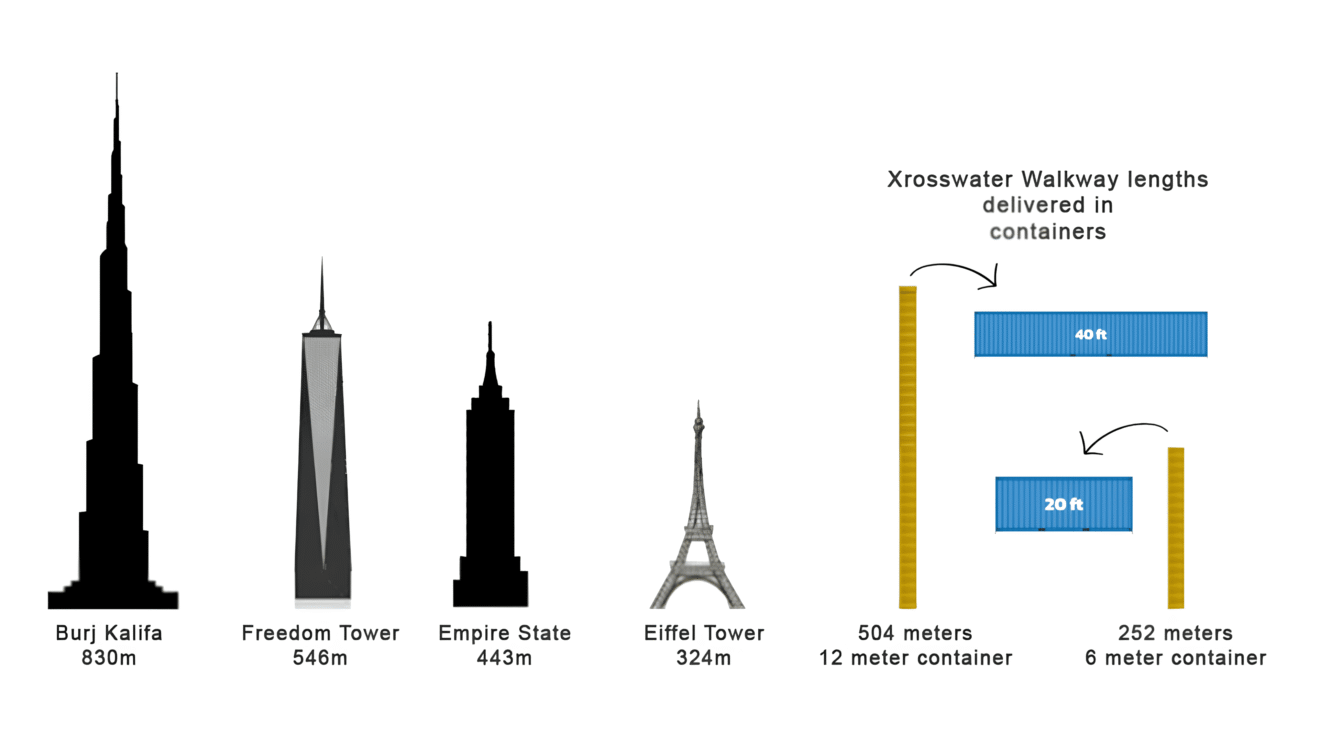

We are able to offer a high quality, robust walkway system that will last longer and be delivered to a mine location at a cost unmatched elsewhere. Being supplied in component form, we are the only company, capable of shipping 500 m x 1.5 m (1640 ft x 5 ft) in 1×40 ft container to worldwide destinations from our assembly plants in USA and Austria.
Manufactured in USA and Europe under ISO quality control.
Xrosswater offer the services of :
- Design
- Delivery
- Sales
- On Site Assembly Training
In summary Xrosswater’s walkway is:
- extremely versatile with multiple configurations,
- immensely strong (tried and tested at +40c to -40c (40f)
- assembled with aluminium or corrosive resistant material that can work in very high and very low PH water (Acid vs Alkaline)
- bulk shippable 250 meters in 1 small shipping container
- Strong, durable and resilient to sea water and UV
- value for money
- Sold RTA (Ready to Assemble) supports social economic local work force for assembly and installation.
- The highest quality material offering a robust system that will last longer and be delivered anywhere in the world at a cost and quality unmatched – guaranteed.
- Delivered from our contracted inventory locations in North America and Europe
Optional fittings available to support different requirements
To offer a full service to most industrial requirements, Xrosswater Gmbh can also offer:
- LED lights
- De-icers
- Waterproof Electrical control panel
- A range of appropriate anchoring systems
Pioneering to service clients that operate in extreme cold locations of the world, Xrosswater, with the assistance of a US Military testing facility, reduced the temperature of the floats to – 40F (-40c) for 24 hrs to saturate the material and then completed impact testing of loads over 100kg from 1.2m high. No cracking or visible damage was reported.
Shipping Options

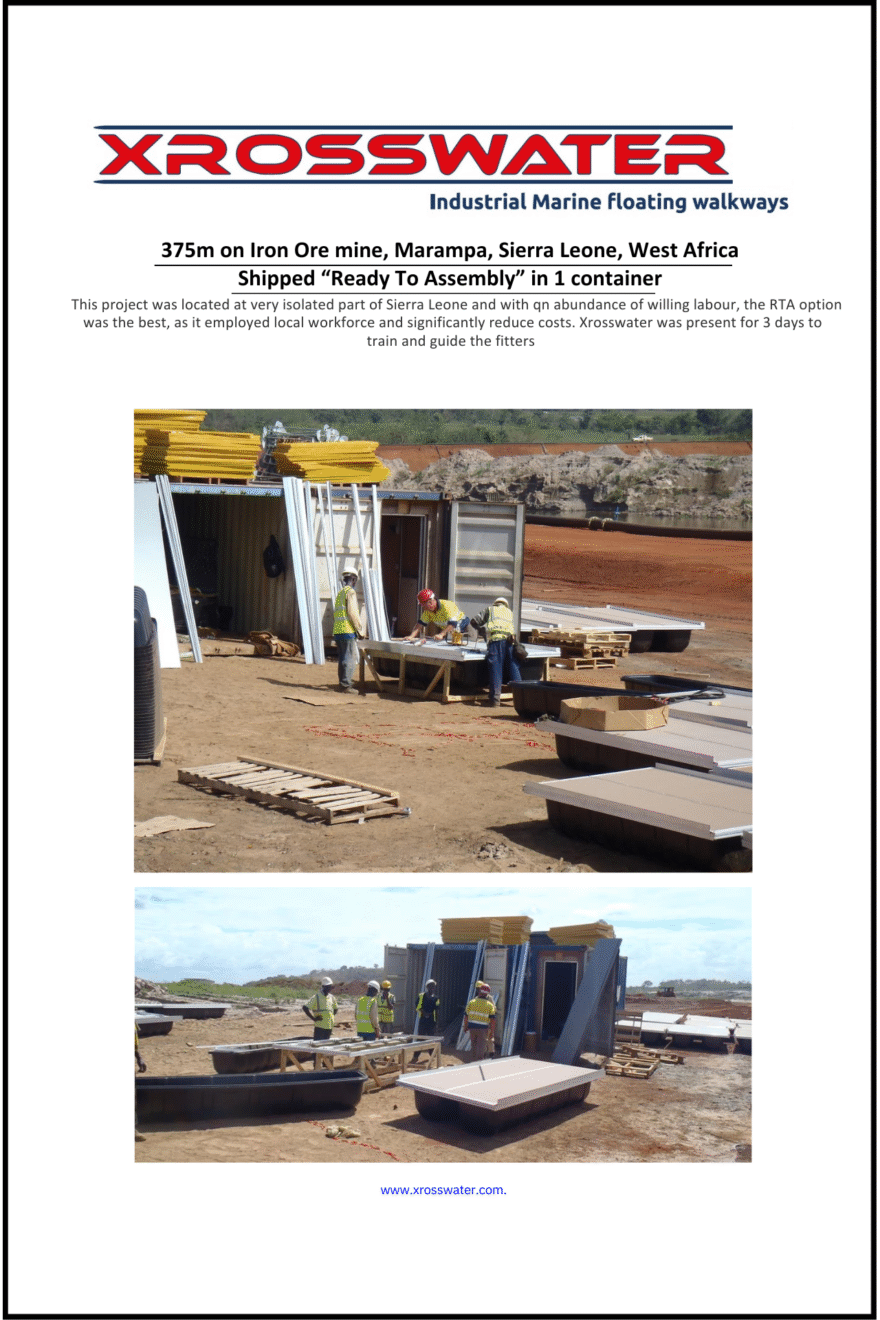

Ready To Assemble packed in crates. The client assembles the walkway (504m in 1 container).
We assemble the section but do not mount the handrails (72 – 96m in 1 container)
with handrails, LED lights*, deicers* for pivot (snake walkway) or wide foldable heavy lift design (1.7 tonne buoyancy) 14m per flatbed truck
* = Optional fittings
